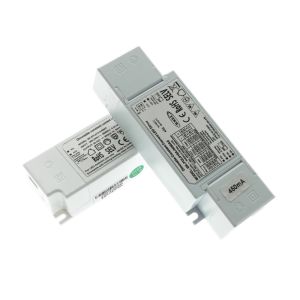

    Office Lighting Triac Dimmable LED Driver 900ma Constant Current

    Ask Lasest Price
    Brand Name : OKYSTAR
    Model Number : CEL
    Certification : CE
    Price : 1.98-5.63usd/pc
    Payment Terms : L/C, Western Union, T/T, Western Union, MoneyGram
    Supply Ability : 100000PCS/WEEKS
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Office Lighting Triac Dimmable LED Driver 900ma Constant Current

    Office Lighting Triac Dimmable LED Driver 900ma Constant Current


    Triac Dimmable Led Driver High Voltage Flicker-Free Constant Current

    SKUSpecification
    Output PowerInput VoltageOutput VoltageOutput Currenttransfer efficiencyPFProduct
    Size
    (MM)
    CEL009A5-10W200-240V28-42V(40V)110-250mA85%>0.995*36*24
    CEL013A10-13W200-240V28-42V(40V)250-350mA85%>0.995*36*24
    CEL018A13-18W200-240V28-42V(40V)350-450mA86%>0.9114*41*24
    CEL022A18-22W200-240V28-42V(40V)450-600mA86%>0.9114*41*24
    CEL040A25-40W200-240V28-42V(40V)600-1000mA88%>0.9114*41*24
    CEL050A40-50W200-240V28-42V(40V)1000-1250mA88%>0.9135*45*29
    CEL060A50-60W200-240V28-42V(36V)1250-1650mA88%>0.9156*50*32

    FEATURES

    • 180-264VAC input
    • Class Ⅱdriver,without FG,with flicker
    • Built in active PFC function,high PF,low THD
    • Cooling by free air convecation
    • Suitable for indoor LED lighting applications
    • 5 years warranty
    • APPLICATION
    • LED indoor lighting
    • LED office lighting
    • LED architectural lighting

    Feature


    • This product is not recommended for grounding lamps
    • Cooling by free air convecation
    • Suitable for indoor LED lighting applications
    • 5 years warranty

    Parameters


    • Frequency Range:47-63Hz
    • Operation Temperature:-20-45℃
    • Operation Humidity:10-90% RH non-condensing
    • Storage Temperature:-40-80℃
    • Storage Humidity:5-95% RH
    • IP Class:IP20
    • Vibration:10~500Hz,5G 12min./1cycle,period for 72min.each along X,Y,Z axes
    • TC:Tc=90℃(Ta=45℃)
    • Environmental Protection:RoHS
    • Dimming Mode:N/A
    • Electromagnetic Emission:EN55015 GB17743 EN61000-3-3 N61000-3-2(Class C)
    • Safety standards:EN61347-1/2-13 GB19510.1/14 EN62384
    • Life Span:50000H
    • Hi-pot:I/P-O/P:3750V
    • Leakage Current:<0.7mA @ 230Vac
    • Isolation Resistance:I/P-O/P:100MΩ/500Vdc/25/70% RH
    • Electromagnetic Interference:EN61547 EN61000-4-2/3/4/5/6/8/1
    • Max Output Voltage:50V

    Office Lighting Triac Dimmable LED Driver 900ma Constant Current

    Office Lighting Triac Dimmable LED Driver 900ma Constant Current



    Our Services:

    1. 3-5 working days for samples; 7-10 working days for bulk orders normally.
    2. Powerful R&D team, can provide good designs and lighting solutions.
    3. Quick and high efficiency after-sale team, your complaints will be solved with 24 hours by professional team.
    4. We supply OEM and ODM service, and only focus on high quality products.
    5. Payment terms : L/C, Western Union, T/T.
