    30W 10V Dimmable LED Driver Tri Proof Light Power Supply 264VAC Input

    Ask Lasest Price
    Brand Name : OKYSTAR
    Model Number : CJL-AM
    Certification : CE
    Price : 6.92-12.38usd/pc
    Payment Terms : L/C, Western Union, T/T
    Supply Ability : 100000PCS/WEEKS
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

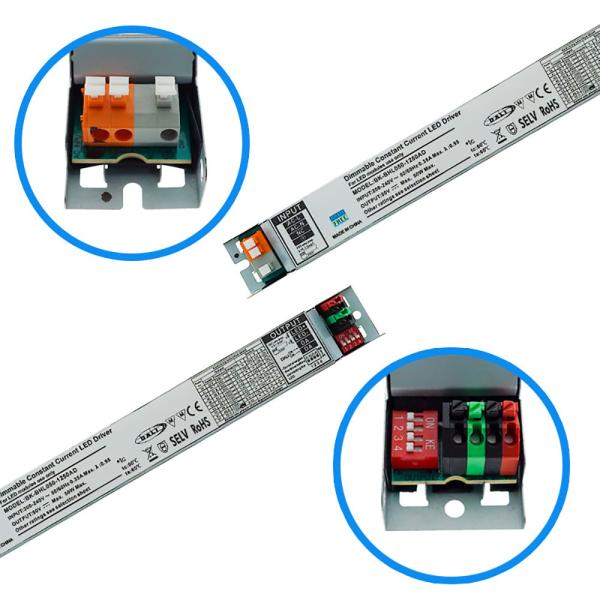

    30W 10V Dimmable LED Driver Tri Proof Light Power Supply 264VAC Input

    30W 10V Dimmable LED Driver Tri Proof Light Power Supply 264VAC Input


    1 10v Dimmable Led Driver Tri-Proof Light Line Light Power Supply 200-240V

    SKUSpecificationWarranty
    Output PowerInput VoltageOutput VoltageOutput Currenttransfer efficiencyPFProduct
    Size
    (MM)
    CJL030AM10-30W200-240V6-42V(40)300-750MA86-88%>0.9245*30*215years
    CJL040AM30-40W200-240V6-42V(40)600-1050MA86-88%>0.9285*30*215years
    CJL050AM40-50W200-240V6-42V(40)800-1250MA86-88%>0.9285*30*215years
    CJL060AM50-60W200-240V6-42V(40)1200-1650MA86-88%>0.9355*30*215years
    CJL080AM60-80W200-240V6-42V(40)1550-2000MA86-88%>0.9355*30*215years

    FEATURES


    • 180-264VAC input
    • Built in active PFC function,high PF,low THD
    • Stanby power consumption <0.5W to turn off dimmable port
    • Built in 12VDC VCC output,maximum output current 100mA
    • Built in 1-10VDC/10V PWM dimming function
    • Constant currentmode output with mulitiple levels selectable
      by DIP.switch
    • Supporting multi-power supplys synchronous dimming
      connected in parallel
    • Cooling by free air convecation
    • 5 years warranty

    APPLICATION

    • LED indoor lighting
    • LED office lighting
    • LED architectural lighting
    • LED commercial lighting
    • Constant currentmode output with mulitiple levels selectableby DIP.switch
    • Cooling by free air convecation
    • Supporting multi-power supplys synchronous dimming connected in parallel
    • 5 years warranty


    Parameters

    • Frequency Range:47-63Hz
    • Operation Temperature:-20-60℃
    • Operation Humidity:10-90% RH non-condensing
    • Storage Temperature:-40-80℃
    • Storage Humidity:5-95% RH
    • IP Class:N/A
    • Vibration:10~500Hz,5G 12min./1cycle,period for 72min. each along X,Y,Z axes
    • TC:Tc=90℃(Ta=60℃)
    • Environmental Protection:RoHS
    • Dimming Mode:N/A
    • Electromagnetic Emission:EN50015 GB17743 EN61000-3-3 N61000-3-2(Class C)
    • Safety standards:EN61347-1/2-13,GB19510.1/14 EN62384
    • Life Span:50000H
    • Hi-pot:I/P-O/P:3750V
    • Leakage Current:<0.7mA@240Vac
    • Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100MΩ/500Vdc/25℃/70% RH
    • Electromagnetic Interference:EN61547 GB17625 EN61000-4-2/3/4/5/6/8/11
    • Max Output Voltage:50V

    A: We are manufacturer with more than 15 years experience.
    Q1: Are your manufacturer and do you have experience?

    Q2: What certificates, do you have for your products?
    A: We have CE,TUV,LVDE,Rohs certificates for our products.
    Q3: Can we add our own Logo on products?
    A: Yes,you can add your logo on them.
    Q4: What is the warranty?
    A: At least 5 years warranty.
    Q5: Can you do special packaging for us?
    A: Yes,we can customize packing.
    Q6: What is your Minimum order quantity?
    A: Nomally 500pcs,small quantity is also available.
    Q7: Can you do sample order?
    A: Yes, we can.

    30W 10V Dimmable LED Driver Tri Proof Light Power Supply 264VAC Input

    30W 10V Dimmable LED Driver Tri Proof Light Power Supply 264VAC Input30W 10V Dimmable LED Driver Tri Proof Light Power Supply 264VAC Input



    Our Services:

    1. 3-5 working days for samples; 7-10 working days for bulk orders normally.
    2. Powerful R&D team, can provide good designs and lighting solutions.
    3. Quick and high efficiency after-sale team, your complaints will be solved with 24 hours by professional team.
    4. We supply OEM and ODM service, and only focus on high quality products.
    5. Payment terms : L/C, Western Union, T/T.
