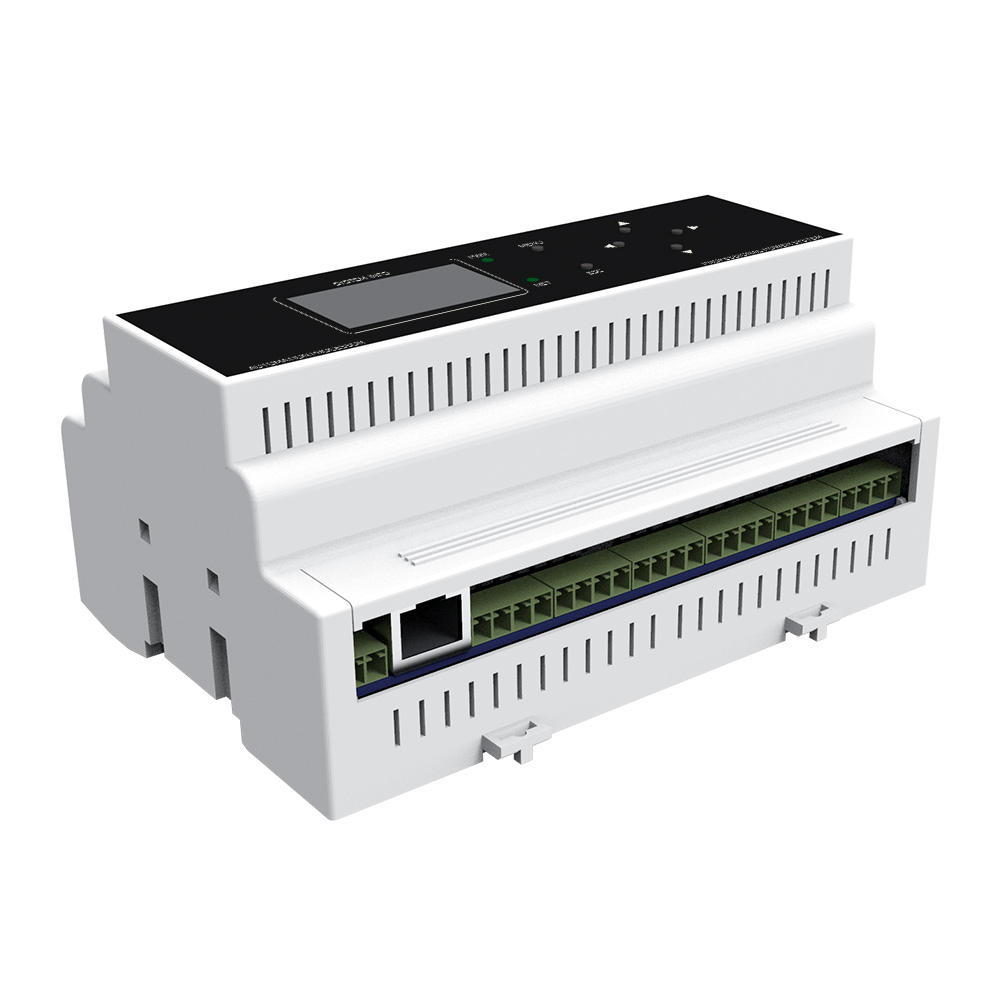

    24VDC RS485 Din Rail Automation Processor

    Ask Lasest Price
    Brand Name : OKYSTAR
    Model Number : DIN-CP1
    Certification : CE,ROHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 1000 pcs per day
    Delivery Time : 3-5 work day
    • Product Details
    • Company Profile

    24VDC RS485 Din Rail Automation Processor

    32-bit ARM Home Automation RS-485 Din Rail Control Processor​


    Description of Control Processor​:


    The DIN-CP1 is a intelligent control processor designed for intelligent lighting and automation applications. DIN rail mounting enables modular installation alongside OKYSTAR DIN rail lighting and automation control modules and other third-party DIN rail mountable devices.


    Specifications of Control Processor​:


    Input voltageDC24V
    I/O 1 – 4(1) 5-pin 3.81mm detachable terminal block comprising (4) digital input/output ports (referenced to GND);
    Digital InputRated for 0-24 Volts DC, input impedance 20k ohms, logic threshold 1.25 Volts DC
    Digital Output250 mA sink from maximum 24 Volts DC, catch diodes for use with “real world” loads
    COM 1 – 5(5) 4-pin 3.81mm detachable terminal blocks Bidirectional RS-485 ports; Up to 115.2k baud

    Control Processor Quick Details:


    1.Ethernet network communication ports support 8pcs TCP and 8pcs UDP ports connection to control third-party devices . Each TCP/UDP connection can be configured as sever or client way.

    2.Ethernet network communication port provides an upward connection TCP/UDP port, which can connect the computer , central control system, compatible with AMX, Crestron, C4 and all third-party control system network connection

    3.The DIN-CP1 has 5-way RS-485 BUS communication port, supports DC-Net BUS protocol, DMX protocol, ModBUS RTU protocol, ModBUS Ascii protocol, third-party protocols and other control protocols; it supports multiple types of control panels, sensor access to control third-party equipment


    Control Processor Specifications


    Information Display128*64 LCD display, display system configuration and status information
    PWR(1) Green LED, illuminates when DC power is applied to the NET port
    NET(1) Yellow LED, Indicates communication with an external control processor

    FAQ:


    1. What is intelligent lighting control system?

    A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.


    2. What is the advantage compare with the traditional lighting control?


    Improve energy efficiency

    Reduce maintenance cost

    Easy operation and more convenient


    3. What Okystar can supply for you?


    Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
