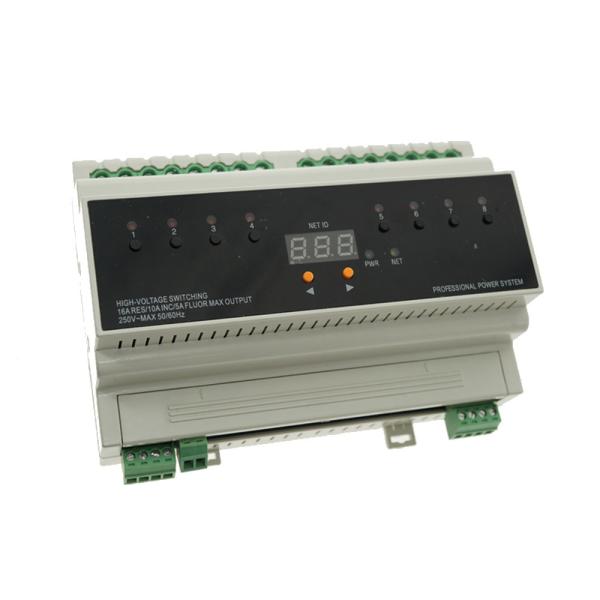

    RS-485 Intelliegent System Lighting Control Module With 8 Channels Execution

    Ask Lasest Price
    Brand Name : OKYSTAR
    Model Number : DIN-REL8
    Certification : CE
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Delivery Time : 3-7days
    • Product Details
    • Company Profile

    RS-485 Intelliegent System Lighting Control Module With 8 Channels Execution

    RS-485 Intelliegent System With 8 Channels Execution Module


    Specifications:

    The DIN-REL8 is an 8-channel lighting control module designed to support switching of non-dimmable lighting and fans. A single model supports both 120and 220-240 Volt applications. Each channel handles incandescent loads up to 10 Amps, fluorescent loads up to 5 Amps, and also 1/2 HP motors.


    Controls & Indicators:


    Indicator light & button

    (8)Red LEDS and (8)miniature pushbuttons for status indication and local control of each channel

    NET ID(3) 7-Segment green LED digits and (2) miniature pushbuttons for setting DC-NET ID; digits also display output levels
    PWR(1) Green LED, illuminates when DC power is applied to the NET port
    NET(1) Yellow LED, indicates communication with the control processor
    RESET(1) Recessed miniature pushbutton, resets internal processor

    Connections:


    Connector(8) sets of (2) captive screw terminals; Isolated Class 1 SPST relay switch circuits 1 - 8
    Relay Rating10 Amps incandescent, 5 Amps fluorescent, 16 Amps resistive, 0.5 HP @ 240 Volts AC (per channel)c
    NET(2) 4-pin 3.81mm detachable terminal blocks, paralleledOVERRIDE
    OVERRIDE(1) 2-pin 3.81mm detachable terminal blocks, paralleled;Sensing input for external low-voltage contact closure; Activates override mode when a closure is present;

    Main parameters:


    DC-NET Power Usage

    5 Watts (0.20Amps @ 24 Volts DC)

    Dimmer Channels

    8

    Temperature

    32° to 104°F (0° to 40°C)

    Heat Dissipation

    20 BTU/hr

    Humidity

    10% to 90% RH (non-condensing)

    Weight

    400 g

    Different packing at optional:


    1. Retailing Packing:
    Neutral Carton Package


    2. Bulking Packing:
    Carton Package-Can save packing cost
    Anti-static bag--Can protect electronic components from potential electrostatic hazards


    3. Customized Packing
    Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar code,ect. ( Discuss extral)


    FAQ:

    • What is intelligent lighting control system?

    A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.


    • What is the advantage compare with the traditional lighting control?

    • Improve energy efficiency
    • Reduce maintenance cost
    • Easy operation and more convenient

    • What Okystar can supply for you?

    Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable. And we have technical team to support skype is okystar22 to you.
