Smart Home Lighting Control Module of 4 Channels of 0-10 Volt Dimming Controller

Description

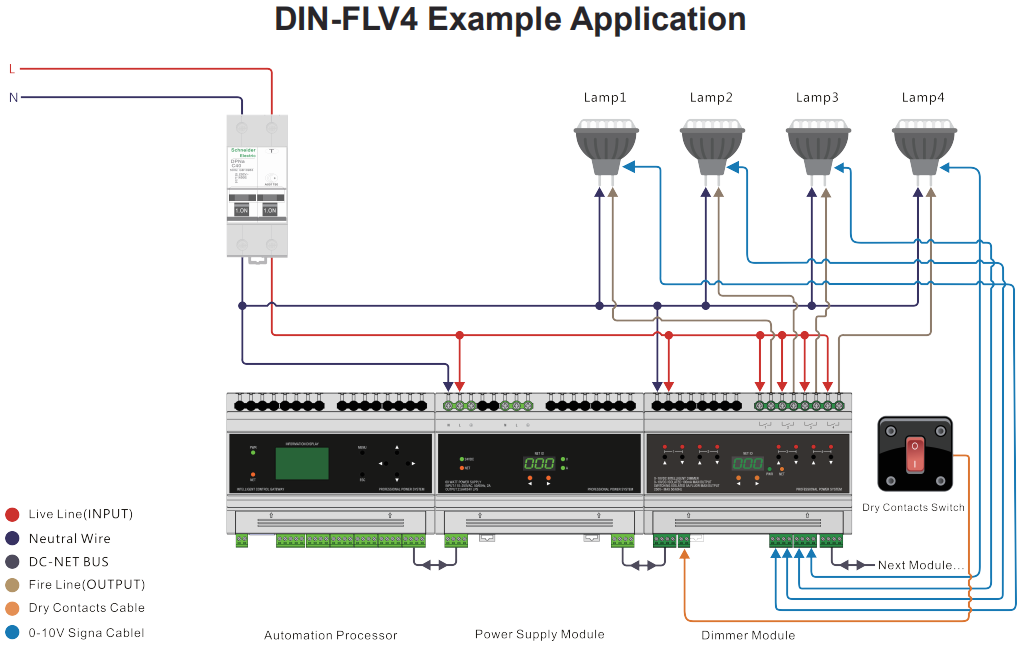

The DIN-FLV4 is a 4-channel lighting control module designed to dim 0-10 Volt drivers and ballasts. A single model supports both 120 and 220 to 240 Volt applications. The DIN-FLV4 may also be used for switching of non-dim_x0002_mable lighting loads up to 5 amps[1] and 1/2 HP motors.

OUTPUT 1 – 4	(2) 4-pin 3.81mm detachable terminal,blocks comprising (4) isolated dimming control outputs
Voltage Control Range	0 to 10 Volts DC
Maximum Sink Current	100mA per channel
connector	(4) sets of (2) captive screw terminals; Isolated Class 1 SPST relay switch circuits 1 – 4
Relay Rating	5 Amps maximum per channel
Maximum Wire Size	12 AWG (2.5 mm²)
NET	(2) 4-pin 3.81mm detachable terminal Blocks, paralleled; DC-NET slave port

Enclosure

Light gray polycarbonate housing with polycarbonate label overlay, UL94 V-0 rated, 35mm DIN EN 60715 rail mount, DIN 43880 form factor for

enclosures with 45mm front panel cutout, occupies 8 DIN module spaces(143mm).

Dim Load Types

0-10 Volt fluorescent ballast or LED driver (4-wire); Maximum of 40 dimmable ballasts/drivers

Switch Load Types[1]

Incandescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, fluorescent, motors

Different packing at optional:
1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic
hazards

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss
extral)

FAQ:

1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient

3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
