Multi-functional DALI LED Dimmer with RS-485 Interface for building
automation
Smart Lighting Control System Solution Advantages
1. Cost and time advantages in planning, installation,
commissioning and reprogramming
2. Improves comfort.
3. High flexibility, extense function at any time
4. DIN rail components and surface mounted devices
5. Input and output combinated various devices.
6. All loads in the room (lights, blinds, heating, etc.) can be
controlled using a central device
DALI Dimmer Controller Specifications
NET | (2) 4-pin 3.81mm detachable terminal blocks, paralleled |
OVERRIDE | (1) 2-pin 3.81mm detachable terminal blocks.Sensing input for
external low-voltage contact closure; Activates override mode when a closure is present, forces each
ballast into its defined “System Failure Level” |
Minimum Closure Rating | 10mA (per module) at 24 Volts |
DALI Interface | (1) 2-pin 7.62mm terminal blocks Each channel controls a single DALI loop (up to 64 ballasts); |
COMPUTER | 1) USB Type B female, USB 1.1 computer console port |
TEST | (6) miniature pushbuttons for testing on/off and dim up/down for
all attached ballasts in channel |
DALI POWER | (1) 2-position switch, sets DALI power between internal (INT) and
external (EXT); When set to “INT” DALI uses power supplied by the DIN-DALI; When set to “EXT” DALI uses power provided by external power supply
(not included) |
LCD Panel | (1) LCD Display Panel for Used for displaying various equipment
information and operation status information |
PWR | (1)Green LED, illuminates when DC power is a applied to the NET
port |
NET | (1)Yellow LED, Indicates communication with an external control
processor |
DALI Dimmer Controller Application
DALI Dimmer Applied in: stadium, school, hospital, airport, metro,
church, office, commercial building, parking lot/car park/parking
area, outdoor spaces, foyer, lobby, elevator hall, public walkway,
bathroom, underground garage, meeting room, villa, home lighting,
plazas, shopping malls, public building, industrial plants and
factories, etc
DALI Dimmer Controller Tools
Designed specifically for the DIN-DALI the DALI commissioning
software tool facilitates system setup. The intuitive menu-driven
wizard provides step-by-step configuration of ballast properties,
groups, and scenes.
Guided by the software, one can simply set the ballast address and
check connectivity status, edit minimum/maximum levels and fade
time, and change ballast groupings and scenes.
DALI Dimmer Controller System Integration

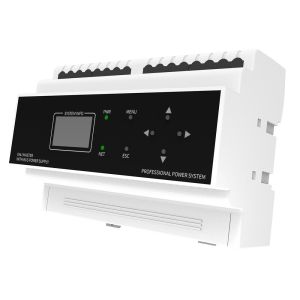

The DIN-DALI is designed to snap onto a standard DIN rail for
installation in a wall mount enclosure. Wiring connections are made
using screw terminals positioned along the top and bottom, clearly
accessible from the front for easy installation and servicing. All
setup controls and indicators are positioned on the center front
panel. When the DIN-DALI is installed in an enclosure utilizing 45
mm cutouts, the front panel stays accessible while the connections
are concealed.
Exhibition
FAQ
1. What is intelligent lightincontrol g system?
A lighting control system is an intelligent network based lighting
control solution that incorporates communication between various
system inputs and outputs related to lighting control with the use
of one or more central computing devices. Lighting control systems
are widely used on both indoor and outdoor lighting of commercial,
industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting
control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for
you, economic and customization, with industrial-grade design,
product architecture in line with international electrical
standards, using high-quality components, products are stable and
reliable.
