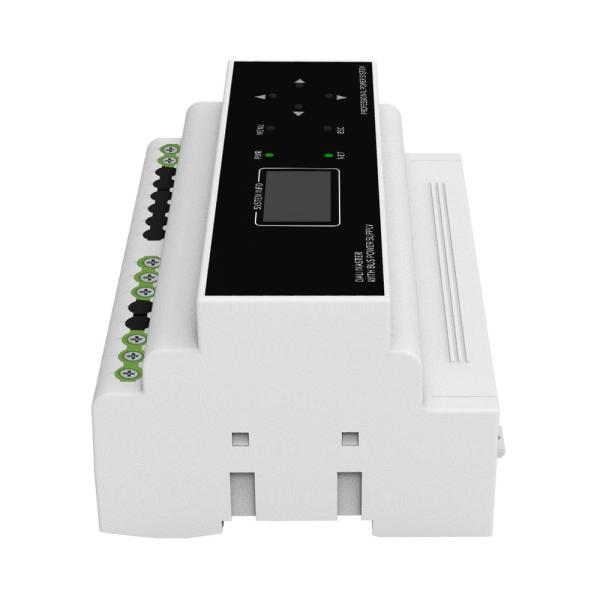

DIN Rail 24V DC DALI Lighting Control Module Applied In Home Automation System
The DALI control module has the function of dimming and processor, It can be compatible with other protocol and even third-party devices. DALI controller can maximum connect to 64 devices, which ensure the diversity of Automation Lighting System.
If you have any problems, please contact: Whats APP: (+86) 178 9844 9880 Skype: okystar12

Description of DALI Lighting Control Module

With USB and RS-485 communication interface;

Support a DALI bus, most allow linking 64 DALI lighting equipment ;

Scan equipments, meet the requirement of automatic address assignment of DALI protocol;

There are 3 ways to assign address;

Broadcast equipments, control group or single address;

All the parameters of the parameters table of DALI protocol can be read or set;

Setting / reading by group;

Setting / reading by Scene;

With DALI POWER individual output interface, more flexible compatibility;

Provide third-party control commands and seamless integrated control with third-party control system;

Built-in 220V AC power input port and 24V DC input port, which can be operated by any of the power supply modes.

Main technical index

Input voltage	DC 24V / AC 220V
power consumption	≤10W
DALI power output	250Ma
Connect	USB RS-485
Operating temperature	0-70℃
Operating huminity	10%-90% RH(no-condensing)
Weight	300g

Product size and installation wiring

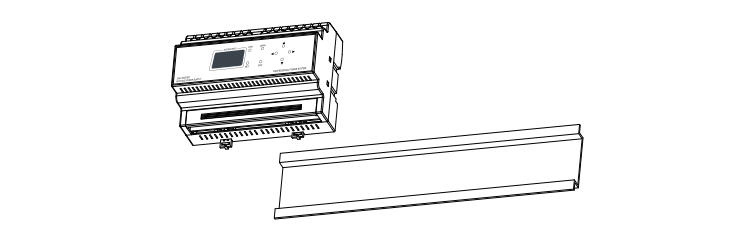

Mounting :

The DALI Master is made for DIN rail mounting (35 mm DIN rail), which can provide customer with a more convenient method for installation.

An application example for DALI Master:

Different packing at optional:
1. Retailing Packing:
Neutral Carton Package
2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic hazards
3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar code,ect. ( Discuss extral)

FAQ:

1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient

3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
